S3analyse is Sciencesoft’s next generation reservoir simulation post-processing software package. Built on our experience of developing and supporting S3GRAF over many years, S3analyse takes reservoir simulation plotting and analysis to the next level.

S3analyse supports the widest range of simulators in the market, including Eclipse, Intersect (corner point grids), Nexus, T-Nav, Meteor and UTCHEM (with CMG support to follow). S3analyse’s power and ease-of-use will enable reservoir engineers to enhance their productivity and make key decisions fast.

S3analyse will load and plot data from ensembles with 100s of simulation runs in seconds. Multiple standard dashboards include single run and ensemble NPV, with the ability for the user to create their own dashboards

S3analyse also contains our proprietary and innovative HPG (High Performance Grids) technology. HPG enables engineers to load and view large grids (tens of millions of cells) and associated data (potentially several Gbytes in size) in seconds, thus eliminating the data loading bottleneck

Click to enlarge

Multiple plots and plot types on a page

Click to enlarge

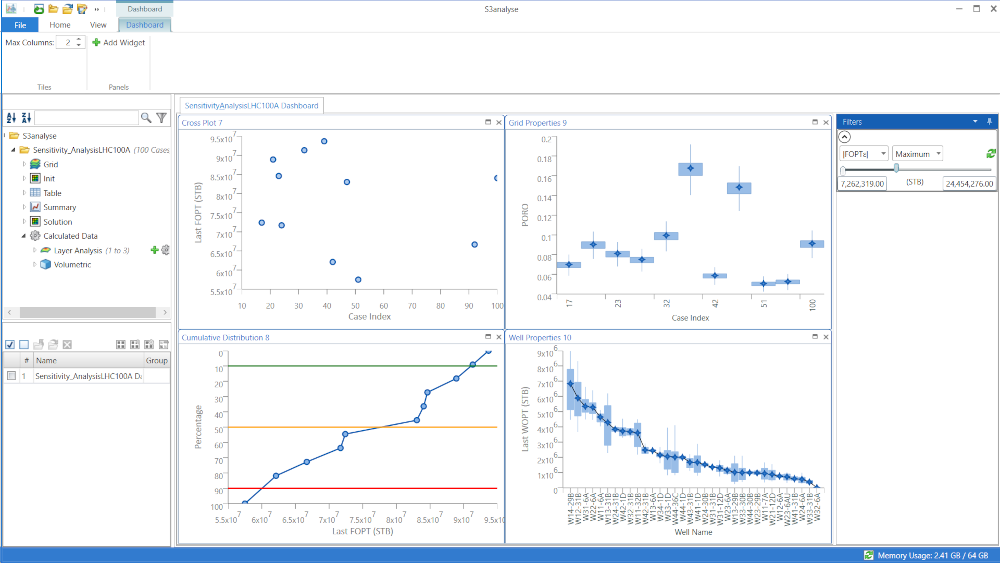

Sophisticated and configurable filtering dashboards

• Click to enlarge

  Ensemble plots

Click to enlarge

NPV - Net present value

Click to enlarge

Ensemble multi-plots

• Click to enlarge

  Histogram viewer

Close

Multiple Plot Types and Multiple Plots on a Page

Close

Sophisticated and Configurable Dashboards with Filtering

Close

Ensemble Plots

Close

NPV - Net Present Value

Close

Ensemble Multi-plot

Close

Histogram Viewer

Key features:

• Multiple graphs in one window
• Fast creation of ensemble line plots with sophisticated filtering routines e.g. top 10% of producers
• Automated Sim-Obs Mismatch calculation added to Summary data
• User configurable NxN line plots
• Load and display of RFT data
• On the fly load and creation of derived quantities
• Single click conversion of data and plots between unit systems
• On the fly load and creation of Volumetrics (OIP,GIP,WIP) at surface conditions
• On the fly load and creation of average and sum grid maps
• Single click Line Analysis, Scatter Plots and Histograms on grid properties
• Pulldown case selection for viewing and playing of any Solution vector in time
• Automated NPV calculation and plot, including costs of abandonment, polymer and taxes etc.
• Automated NPV for ensembles
• Mismatch plot for ensemble on Field or Well data
• Configurable dashboard plots run on the ensemble.
• Ensemble plots can be filtered by any Summary data including mismatches.
• The current selection of Dashboards:
• Cross Plots between Summary and INIT data
• Cumulative Distribution Plot
• Ensemble Line Plot with statistics on vector
• Grid Property Plot with Av, Std Dev and Max and Min for all cases
• Pearson Coefficient
• Radar Plot
• Well Statistics for wells ranked by production with Av, Std Dev and Min Max drawn on plot
• Export plots to PPT, Word or Excel
• Python scripting for user determined vector creation and plotting routines
